dp.exe — KiTTY Password Decryptor

📚 Table of Contents

• Feature Overview
• Architecture
• Usage
  • GUI Mode
  • CLI Mode
• Crypto Engine
• Session Scanner
• Export
• UI and Dark Mode
• Module Map
• Source Tree
• Build System
• System Requirements

Feature Overview

This is a standalone Win32 utility written in modern C++23 that provides comprehensive KiTTY password decryption capabilities:

Core Capabilities

• Password decryption — KiTTY custom base64 + Fisher-Yates scramble seeded by ciphertext prefix; two key derivation modes tried automatically
• Session scanning — Recursive directory walker (max depth 4) searches for Sessions folders; percent-decodes filenames; skips Default Settings
• GUI — Win32 dialog, sortable/filterable SysListView32, double-click / right-click clipboard copy
• CLI — Headless single-password decrypt; two argument orderings; attaches to parent console for pipeline use
• Export CSV — RFC 4180, semicolon-separated, double-quote escaping, UTF-8 no BOM
• Export JSON — Pretty-printed JSON array, full Unicode escape for control characters, UTF-8 no BOM
• Dark mode — Auto-detects Windows dark/light theme; MICA backdrop on Win11 (build ≥ 22000); rounded corners via DWM; reacts to WM_SETTINGCHANGE live
• DPI — Per-Monitor DPI v2 (manifest); Segoe UI Variable on Win11, Segoe UI fallback; font scaled via GetDpiForWindow
• No dependencies — Pure Win32; no external DLLs; no VC++ Redistributable; statically linked CRT (/MT)

Design Priorities

1. Zero external dependencies — pure Win32 API surface
2. Modern C++23 architecture with RAII and std::format
3. Deterministic behavior with fail-fast crypto fallback
4. Native Windows UX with dark mode, MICA, and DPI awareness

Architecture

Layered Structure

wmain (dp.cpp)
  ↓
dp::app::Run (App.cpp)
  ├─ CLI path  ──► dp::core::DecryptPassword ──► KittyDecryptBase64
  │                                               └─ KiTTY base64 engine
  └─ GUI path  ──► dp::ui::MainDialog::Show
                        ├─ OnScan ──► dp::core::LoadSessionsFromRoot
                        │             ├─ ScanDir (recursive walker)
                        │             ├─ ReadKeyValues (kv parser)
                        │             └─ BuildSession ──► DecryptPassword
                        ├─ OnExportCsv  ──► dp::core::ExportCsv
                        ├─ OnExportJson ──► dp::core::ExportJson
                        └─ ApplyTheme ──► DWM + uxtheme dark-mode stack

Namespace Map

Usage

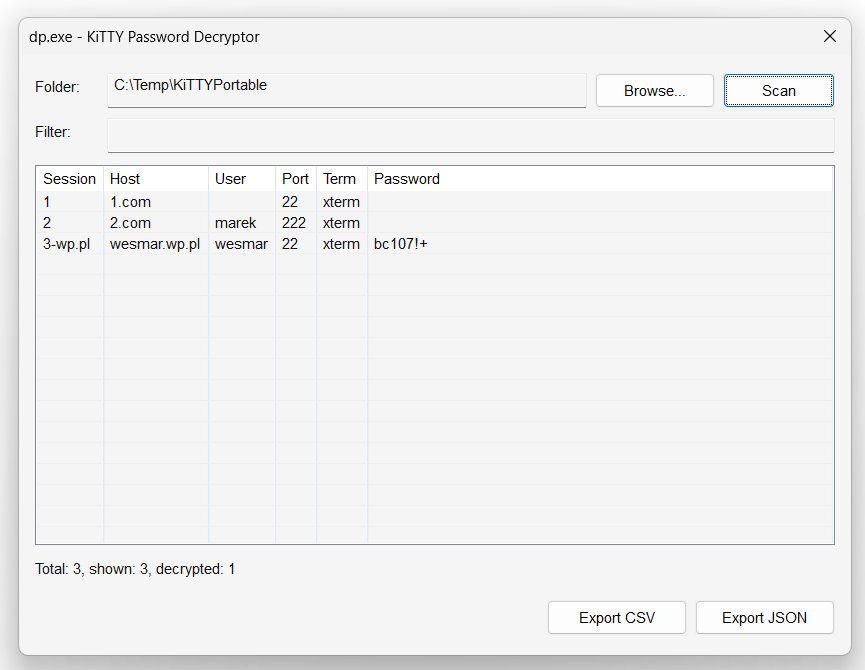

GUI Mode

Launch dp.exe with no arguments. The main dialog opens:

1. Click Browse… to select a root folder (e.g. your KiTTY Portable directory or %APPDATA%\KiTTY).
2. Click Scan — the tool recursively finds all Sessions subdirectories and decrypts every stored password.
3. Use the Filter box to search across session name, host, user, terminal type and password simultaneously (case-insensitive).
4. Click any column header to sort; click again to reverse.
5. Double-click a row or right-click → Copy selected to copy tab-separated fields to the clipboard.
6. Export CSV / Export JSON — save the currently shown (filtered) set via a standard Save dialog.

Rows with a failed decrypt are rendered in red. The status bar shows total / shown / decrypted counts.

CLI Mode

dp.exe <password> <host> <term> [0|1]
dp.exe <0|1>      <host> <term> <password>

Two argument orderings are accepted — mode flag first or password first. The mode flag is optional; when omitted the engine tries both key derivation modes automatically.

Example (from build.ps1 smoke test):

dp.exe 1633bGXSgBnT4I wesmar.wp.pl xterm 0
Expected output: bc107!+

On success the plaintext is written to stdout followed by a newline and the process exits with code 0. On failure ERR:DECRYPT is printed and the exit code is 1. When launched from a terminal the process auto-attaches to the parent console and sets UTF-8 output.

Help:

dp.exe --help
dp.exe -h
dp.exe /?

Crypto Engine

KiTTY stores passwords as a custom base64-encoded ciphertext. The decryption algorithm implemented in KittyBcrypt.cpp works as follows:

Base Alphabet

A shuffled 64-character set distinct from standard Base64:

AZERTYUIOPQSDFGHJKLMWXCVBNazertyuiopqsdfghjklmwxcvbn0123456789+/

Key Derivation

Two modes, both attempted automatically:

Decryption Steps

[mermaid]
flowchart LR
A[Ciphertext] --> B[Seed Alphabet
≤5 bytes]
B --> C[Advance Past
Seed Prefix]
C --> D{Marker Byte?}
D -->|Yes| E[Accumulate Offset
Re-scramble Alphabet]
D -->|No| F[Locate in Alphabet]
E --> G[Output
offset + index]
F --> G
G --> H{Every pattern.size()?}
H -->|Yes| I[Key Re-scramble]
H -->|No| J{More Bytes?}
I --> J
J -->|Yes| D
J -->|No| K[Plaintext Output]

1. **Seed the alphabet** with the first ≤ 5 bytes of the ciphertext (Fisher-Yates scramble driven by ciphertext bytes).
2. **Advance past** the 5-byte seed prefix.
3. **For each remaining ciphertext byte:**
   - Detect **marker bytes** (equal to the last character of the current alphabet)
   - Each marker accumulates an offset and re-scrambles the alphabet using the key
4. **Locate the non-marker byte** in the current alphabet; output `offset + index` as the plaintext byte.
5. **Every `pattern.size()` decoded bytes** trigger another key-driven re-scramble.
6. **Skip silently:** embedded newlines and characters absent from the current alphabet.

`DecryptPassword` tries mode 0 first; falls back to mode 1 if mode 0 yields no output.

---

## Session Scanner {#session-scanner}

`Scan.cpp` — `LoadSessionsFromRoot(root, out)`

### Scanning Process

[mermaid]
flowchart TD
    A[Root Directory] --> B[Recursive Walk<br/>Max Depth 4]
    B --> C{Directory =<br/>'Sessions'?}
    C -->|No| B
    C -->|Yes| D[Read All Files<br/>in Sessions]
    D --> E[Parse Key-Value<br/>KeyName\Value\n]
    E --> F[Percent-Decode<br/>Filename]
    F --> G{Default Settings?}
    G -->|Yes| H[Skip]
    G -->|No| I[Extract Fields]
    I --> J[Decrypt Password]
    J --> K[Build Session Struct]
    K --> L[Add to Output]

Scanner Characteristics

• Recursively walks subdirectories up to depth 4
• When a directory named Sessions (case-insensitive) is found, all files inside it are treated as session files
• Subdirectories of Sessions are not descended
• Each session file is parsed as KeyName\Value\n key-value pairs (KiTTY's native storage format)
• The filename is percent-decoded (%XX → byte) and widened to UTF-16 for the session name
• Default Settings (and its percent-encoded form) is silently skipped

Fields Extracted Per Session

• Files are read in a single ReadFile call (capped at 64 MiB)
• Zero-copy string_view slicing is used for line parsing

Export

Both exporters build the entire output in a std::string buffer before writing in a single fwrite call (RAII unique_ptr<FILE>).

CSV Export (ExportCsv)

• Semicolon-separated, UTF-8 no BOM
• RFC 4180 double-quote escaping
• Columns: Session;Host;User;Port;Term;Password;Source

JSON Export (ExportJson)

• Pretty-printed JSON array, one object per line
• std::format used for field serialisation
• All control characters (< 0x20) emitted as \uXXXX
• Special characters (", \, \n, \r, \t) escaped per JSON spec

UI and Dark Mode

MainDialog is a single modal Win32 dialog (DIALOGEX, resource IDD_MAIN). All Windows API surface uses Unicode (W variants). The dialog owns one SysListView32 with full-row select, double-buffer, and grid lines.

Dark Mode Detection

Reads HKCU\...\Themes\Personalize\AppsUseLightTheme. Theme is applied on WM_INITDIALOG and refreshed live on WM_SETTINGCHANGE / ImmersiveColorSet.

DWM Attributes Applied at Runtime

Undocumented uxtheme.dll Ordinals

Loaded dynamically; all calls are no-ops on older Windows:

ListView Styling

SetWindowTheme(list_, L"DarkMode_Explorer", nullptr) applied to the SysListView32 and its header in dark mode. The NM_CUSTOMDRAW handler:

• Colours failed-decrypt rows red
• Highlights filtered rows with a tinted background

Font

Segoe UI Variable (Win11) / Segoe UI (Win10), height scaled with GetDpiForWindow and MulDiv(9, dpi, 72), CLEARTYPE_QUALITY.

Module Map (for Maintainers)

Source Tree (Local Repo)

Current local layout:

dp/
├─ src/
│   ├─ dp.cpp                  wmain
│   ├─ WinCommon.h             Windows targeting + lean headers
│   ├─ Resource.h              Control and dialog IDs
│   ├─ LinkerDeps.cpp          Pragma-lib dependencies
│   ├─ dp.manifest             DPI v2 / CC v6 / Win11 compat manifest
│   ├─ dp.rc                   Dialog template + version resource
│   ├─ app/
│   │   ├─ App.cpp             CLI/GUI dispatch
│   │   └─ App.h
│   ├─ core/
│   │   ├─ Session.h           Session data struct
│   │   ├─ Crypto.cpp/h        DecryptPassword (dual-mode key derivation)
│   │   ├─ KittyBcrypt.cpp/h   KittyDecryptBase64 (nbcrypt engine)
│   │   ├─ Scan.cpp/h          Session directory walker and parser
│   │   ├─ Export.cpp/h        CSV and JSON export
│   │   └─ StringUtil.cpp/h    UTF-8/wide conversions, percent-decode, search
│   └─ ui/
│       ├─ DarkMode.h          Uxtheme ordinal wrappers (header-only)
│       ├─ MainDialog.cpp      Full Win32 dialog implementation
│       └─ MainDialog.h
├─ dp.vcxproj                  MSBuild project
├─ dp.vcxproj.filters          Solution Explorer filter layout
├─ dp.slnx                     Solution file
└─ build.ps1                   Build + clean + smoke test script

Build output:

bin/
├─ x86/dp.exe
└─ x64/dp.exe

Build System

Requirements: Visual Studio 2026 with C++ Desktop workload (MSVC v145 toolset).

.\build.ps1

The script performs the following steps:

1. Locate VS 2026 via vswhere.exe
2. Kill any running dp.exe from the repo directory (avoids file-lock on clean)
3. Remove bin\ and obj\ directories
4. Build Release|Win32 and Release|x64 via MSBuild
5. Strip all intermediates (obj\ and everything in bin\ except dp.exe)
6. Stamp both binaries with a reproducible timestamp of 2030-01-01

Compiler Flags (Release)

Linker Entry Point

wmainCRTStartup — Unicode wide-char wmain; no narrow-string codec risk for path arguments.

Smoke Test

Printed by build.ps1 on completion:

cd test
..\bin\x86\dp.exe 1633bGXSgBnT4I wesmar.wp.pl xterm 0
# Expected: bc107!+

System Requirements

dp.exe v1.0.0 — KiTTY Password Decryptor — Modern C++23 Win32 implementation.

wesmar (Marek Wesolowski) | kvc.pl
