2026-04-19 — Initial Release v1.0.0.1

UEFIExtract is a Windows x64 utility for parsing and extracting UEFI firmware images. It builds a full tree of Firmware Volumes, FFS files, and sections — with transparent decompression of Tiano and LZMA-compressed sections. Supports IFR/HII package extraction, BIOS setting offset search (biosfind), Intel FIT parsing, and live BIOS flash read via FPTW64 (readbios). Runs in both GUI and CLI mode from the same binary.

UEFIExtract — UEFI Firmware Parser and Extractor

📚 Table of Contents

• Overview
• Architecture
• CLI Reference
• GUI Reference
• Firmware Parsing
• NVRAM Stores
• Compression Support
• Vendor Wrapper Detection
• Dell PFS Packages
• IFR Extraction
• PE/TE Analyzer
• BIOS Setting Finder
• Search Engine
• Intel FIT Parser
• Live UEFI Variables (vars)
• Live BIOS Read (readbios)
• Dump Modes
• Report Generator
• Surgical Patching
• Build System
• Source Code Structure
• Error Codes
• Troubleshooting

Overview

UEFIExtract parses UEFI firmware images into a structured tree of nodes and provides multiple extraction and analysis operations on that tree.

What UEFIExtract Does NOT Do

• ❌ No re-compression — PatchNode() replaces body bytes in-place at original size; compressing and rebuilding a section is not supported
• ❌ No live flash read on AMD — readbios requires Intel PCH + MEI; parsing a .rom file from any platform (Intel, AMD, ARM) works normally via FfsParser
• ❌ No Linux / macOS — Windows x64 only (Win32, SetupAPI, DWM)
• ❌ No variable writing — biosfind and vars read and locate; writing is left to external tools (e.g. setup_var, UnderVolter)
• ❌ No LZMA/F86 x86 filter — the F86 variant decompresses, but the branch filter is not reversed; the affected node says so instead of presenting the bytes as correct
• ❌ No XZ-based Dell packages — the zlib/PFS form is handled; the XZ variant is not
• ❌ No Dell PFS on Windows 10 — that path needs archiveint.dll for its zlib inflate. Everything else works without it

Architecture

CLI Reference

The binary uses WinMain as its entry point. When launched with arguments it calls AttachConsole(ATTACH_PARENT_PROCESS) or AllocConsole() as needed, then routes through RunCli(). Version string is 2.0.0.

UEFIExtract {-h|--help|-v|--version}
UEFIExtract <image>
UEFIExtract <image> all
UEFIExtract <image> dump
UEFIExtract <image> report
UEFIExtract <image> guids
UEFIExtract <image> ifrscan [-o <dir>]
UEFIExtract <image> biosfind <query> [-o <txt>]
UEFIExtract <image> <GUID> [-o <outfile>] [-m <mode>] [-t <type>]
UEFIExtract vars [<filter>] [-n] [-o <txt>]
UEFIExtract readbios [-o <output.rom>]

vars Flags

Targeted GUID Extraction Flags

Multiple GUIDs can be listed on one command line; each reads its own -o/-m/-t after it.

Console Attach Strategy

The binary is compiled as a GUI subsystem application (WinMain). When invoked from a shell with arguments, it calls AttachConsole(ATTACH_PARENT_PROCESS). If that fails (e.g. an elevated process that lost its parent), it falls back to AllocConsole(). Stdout, stderr, and stdin are reopened to CONOUT$ / CONIN$ accordingly.

After CLI work completes, if the console was attached (not allocated), the function InjectEnterToConsole() writes a synthetic VK_RETURN key-down + key-up pair into the console input buffer via WriteConsoleInputW. This causes the parent shell (CMD, PowerShell) to redraw its prompt — without it, the cursor blinks indefinitely because the shell already printed the prompt before the GUI-subsystem process returned. If the console was allocated (new window), FreeConsole() is called instead so the window closes cleanly.

0 on success. Non-zero ErrorCode value on failure (see Error Codes).

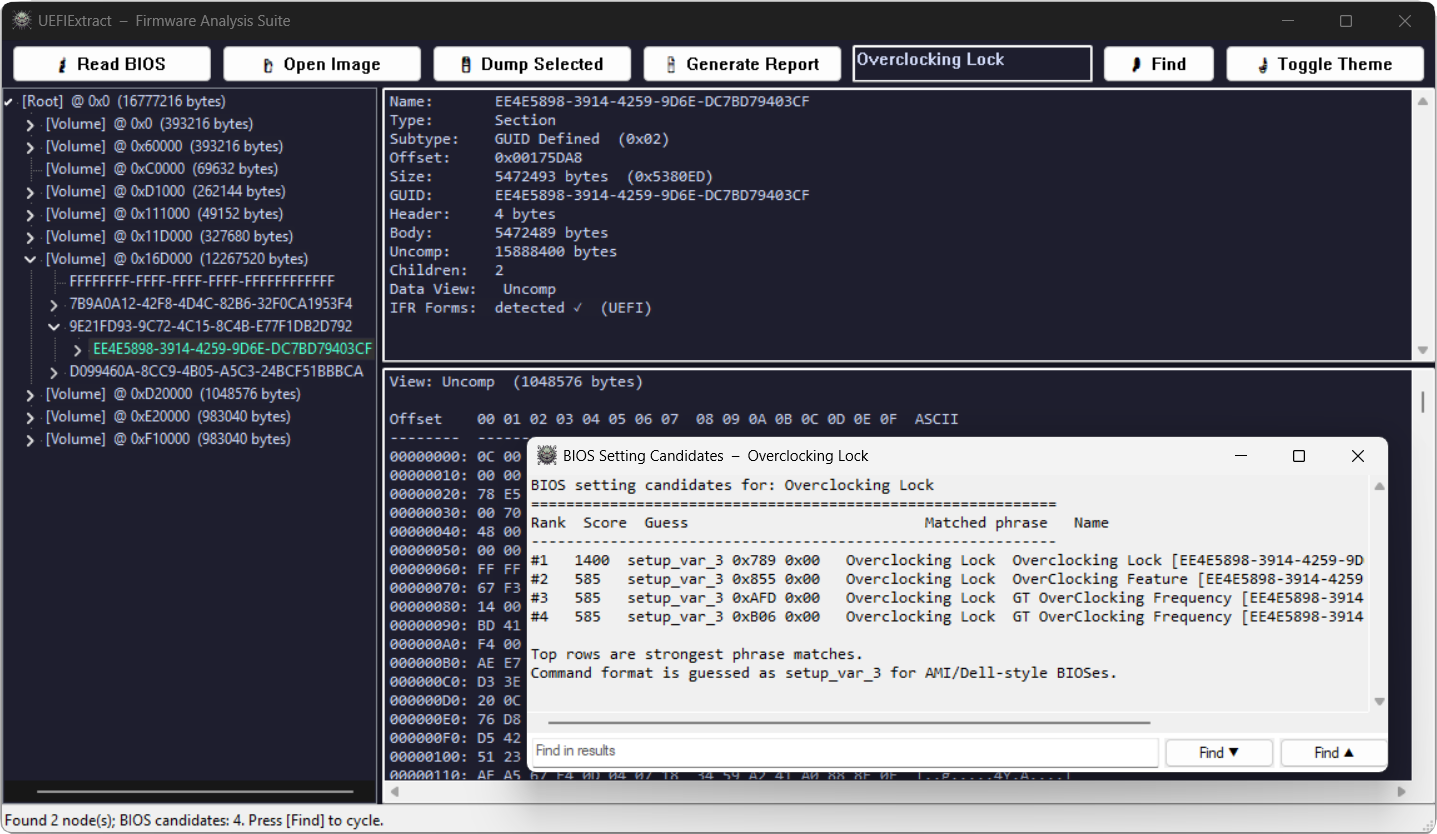

GUI Reference

Launched when no arguments are passed (or with --gui / -g). Built on ModernWindow — a Win32 window class with DWM Mica styling. Defaults to dark mode; toggleable at runtime via Dark Mode button.

Controls

Context Menu (right-click on tree node)

IFR Visual Hinting and Text Cache

Nodes that contain detectable IFR packages are indicated in the tree using a lazy-evaluated cache (m_ifrCache). Detection uses IsIfrCandidate() which scans the first 2 MB of a node's data for EFI/UEFI IFR protocol markers. The cache is keyed by TreeNode* and is cleared on each image reload in PopulateTree().

A separate m_ifrTextCache stores the full ExtractIFR() text output per node. On the first access (e.g. via Extract IFR or a biosfind search), the text is parsed once and stored. All subsequent accesses for the same node return the cached string immediately — avoiding repeated IFR decode passes during interactive search.

Splitters

Two draggable splitters: vertical (m_splitX, default 300 px) separating the tree from the right panes; horizontal (m_splitY, default 220 px) separating details from hex. Minimum pane width/height: 80 px / 40 px.

Firmware Parsing

FirmwareImage

FirmwareImage::FromFile() reads the entire file into a ByteBuffer, runs vendor detection, and strips the wrapper if found (see Vendor Wrapper Detection). The buffer is then handed to FfsParser::Parse(). Decompressed section data is stored in m_ownedBuffers; TreeNode objects hold non-owning ByteView spans into these buffers.

FfsParser

Scans the image for Firmware Volume headers (_FVH signature 0x4856465F). For each valid volume, enumerates FFS files and recurses into sections. Decompression is triggered inline when a Compression or GUID-Defined section is encountered.

Node Tree

Each node carries:

Volume Subtypes

An NVRAM volume carries no FFS file stream; its body is handed to the NVRAM store parser instead.

A volume is named by the FvName GUID from its extended header when one is present, and by its filesystem GUID otherwise. The extended header normally lives inside a pad file, which is why it appears in the tree as one.

File Subtypes

Section Subtypes

Section type numbers are listed explicitly because they are easy to get wrong: EFI_SECTION_FIRMWARE_VOLUME_IMAGE is 0x17, not 0x16. Treating it as 0x16 mislabels it as a freeform section and, worse, never descends into the volume it carries — which on a typical image hides the bulk of the firmware.

Sections larger than 16 MB use the extended header form, signalled by a size field reading 0xFFFFFF with the real length in a following 32-bit field.

NVRAM Stores

A volume whose filesystem GUID is {FFF12B8D-7696-4C8B-A985-2747075B4F50} holds variable stores rather than FFS files. This is where BIOS settings live, so NvramParser.cpp walks it into Store and Variable nodes.

Regions between stores are recorded as free space or as an unrecognised region, so the whole volume is accounted for rather than silently skipped.

Variable headers

VSS variables come in two layouts — a plain 32-byte header and an authenticated 60-byte one — and the classic $VSS store does not say which it uses. Both are tried, and the one whose name length, data length and terminator land inside the store is accepted.

EVSA cross-referencing

EVSA splits a variable across three entry types: a GUID entry, a Name entry, and a Data entry that refers to both by numeric id. The store is therefore walked twice — once to collect the id-to-GUID and id-to-name mappings, once to emit nodes — so a data entry is labelled with the name and GUID it actually belongs to instead of a bare id.

A caveat worth stating

Variable stores inside a BIOS update image are empty by construction: settings live in flash, not in the update package. Every capsule, ISO and vendor executable will show these stores as present but blank. Populated stores appear only in a dump read from a live machine — or, more conveniently, through live UEFI variables.

Compression Support

Decompressors are called from FfsParser and the result is stored as an owned ByteBuffer in FirmwareImage::m_ownedBuffers. The node's uncompressedData() view points into that buffer.

The LZMA implementation bundles the LZMA SDK C files (LzmaDec.c, Bra.h, 7zTypes.h) directly in the source tree under src/Compression/SDK/C/.

zlib without a bundled zlib

Dell PFS containers are zlib streams, but no zlib sources are vendored for them. archiveint.dll — the libarchive that ships inside Windows, and the same library the live BIOS read already uses for its 7z handling — is used instead.

That DLL does not re-export raw inflate entry points, so the stream is re-framed: a zlib stream and a gzip stream carry the same deflate payload behind different framing, so the two-byte zlib header is replaced with a minimal gzip header and the result is read back through libarchive's gzip filter and its raw format. The gzip trailer cannot be computed without first decompressing, so the trailing integrity check is expected to fail; that check is not what guards this path. Every caller validates the inflated bytes against the structure it expects — a PFS container header, and ultimately the firmware volumes themselves — which is a stronger test than a checksum.

The consequence is a dependency: Dell PFS extraction requires Windows 11, where archiveint.dll is present. Everything else — parsing, IFR, biosfind, reports, dumps — degrades gracefully and continues to work without it.

Not supported

LZMA/F86 ({D42AE6BD-1352-4BFB-909A-CA72A6EAE889}) decompresses, but the x86 BCJ branch filter is not reversed, so instruction bytes in the result are not restored to their original form. The node's info() says so rather than presenting the data as correct.

Vendor Wrapper Detection

VendorLoader.hpp detects known firmware packaging formats before the FFS parser runs:

If unwrapping succeeds, only the inner payload is parsed; FirmwareImage::wrapperInfo() holds a description of what was unwrapped.

Note that the FFS parser also sweeps for firmware volumes on its own, at any offset and inside raw and pad files. Unwrapping is therefore an optimisation and a labelling step rather than a precondition: an image whose wrapper is not recognised still parses, as long as its volumes are stored uncompressed.

Dell PFS Packages

A Dell BIOS update executable does not store its firmware at any offset a signature scan can reach. The payload sits behind four layers:

PE executable
└── zlib stream (Dell PFS marker)
    └── PFS container  (PFS.HDR. … PFS.FTR.)
        └── entries, themselves PE files with their own PFS containers
            └── Intel BIOS Guard blocks — the system BIOS, split up

DellPfs.cpp walks all of it. Two details matter:

Several containers per level. Dell keeps utilities and firmware in separate zlib streams side by side, so every stream in a blob is followed, not just the first.

BIOS Guard blocks are not stored in address order. Each block carries an Intel BIOS Guard header stating ScriptSize and DataSize, followed by a script whose first 0x51 instruction gives the flash offset the block belongs at. Concatenating blocks in storage order produces a corrupt image; placing each at its declared address reproduces the original exactly.

Reassembly is refused unless the blocks account for themselves completely: every block's 0x30 + ScriptSize + DataSize must equal its length, every address must be unique, and together they must tile the image with no gap and no overlap. Arbitrary data cannot satisfy those conditions simultaneously.

The XZ-based Dell package variant is not handled; only the zlib/PFS form is.

IFR Extraction

Internal Forms Representation (IFR) is the binary encoding of UEFI HII setup forms stored inside firmware.

Protocol Detection

IFRBridge::DetectProtocol() distinguishes two variants:

IsIfrCandidate() limits scanning to the first 2 MB of any node's data as a fast pre-filter before committing to full extraction.

ifrscan Output Format

[N] IFR <Protocol>  <NodeType> / <SectionSubtype>  @ 0x<offset>  size=0x<size>  data=<body|uncompressed>  <displayName>

With -o <dir>, each match is saved as <displayName>.ifr.txt. A ifrscan_summary.txt index is always written to the output directory.

PE/TE Analyzer

PeAnalyzer runs automatically in the GUI details pane (UpdateDetailsPane) whenever a PE32 or TE section node is selected. It parses the image header and displays:

TE (Terse Executable) is a stripped PE format used by PEI and some DXE modules to minimise image size. The analyzer handles both formats via separate AnalyzePe() and AnalyzeTe() functions. This is independent of IFR detection — it activates on section type alone.

BIOS Setting Finder

biosfind automates the lookup of BIOS setup variable offsets from IFR text. This is the equivalent of manually grepping IFR dumps for CFG Lock, overclocking settings, or any other NVRAM variable.

Query Parsing

The query string is split on ,, ;, \n, and \r. Each phrase is independently normalized (lowercased, non-alphanumeric replaced with spaces) and tokenized. Generic tokens (lock, setting, option, feature, mode, state, enable, disable, support, control) carry a scoring penalty.

Scoring Algorithm

Minimum score threshold for a candidate to be included: 260.

Candidate Extraction

Candidates are extracted from IFR text using two regular expressions:

(Setting|Checkbox|Numeric|Password):\s+(.+?),\s+Variable:\s+0x([0-9A-Fa-f]+)
Numeric:\s+(.+?)\s+\([^)]*\),\s+Variable:\s+0x([0-9A-Fa-f]+)

Variable: 0x0 entries are always discarded. Deduplication key: kind:offset:name.

Output Format

#Rank  Score  setup_var_3 0x<offset> 0x00   <matchedPhrase>    <name> [<nodeName> | <protocol>]

Up to 24 candidates are printed; additional results are indicated by a count message. The command format shown (setup_var_3) is a heuristic for AMI/Dell-style BIOSes.

Live Values

When the machine's own UEFI variables are readable, a second block follows the table showing what each candidate offset currently holds:

Live values on this machine
---------------------------
#1   VT-d            SaSetup[0x52]=0x01  CpuSetup[0x52]=0x00  Setup[0x52]=0x00

IFR gives the offset of a setting but not which variable store holds it, so the value is shown for every setup variable large enough to contain that offset, and the output says as much rather than picking one and hoping. In the example above SaSetup is the right store — VT-d is a System Agent setting — and 0x01 means enabled.

This turns a guessed offset into a value that can be checked against the firmware setup screen before anything is written. The block is omitted when the variables cannot be read, which is the case without Administrator rights, on a legacy-BIOS boot, or when the image belongs to a different machine than the one running the tool.

Search Engine

SearchEngine supports four pattern kinds, all auto-detected from the query string:

Plain text queries (AutoDetectAll) generate both an ASCII and a Unicode pattern and search with both simultaneously.

Matching Details

• Exact hex without wildcards — uses std::boyer_moore_horspool_searcher for fast bulk scan.
• Wildcards (??) — linear scan with per-byte mask check.
• Case-insensitive ASCII — std::tolower per byte against lowercased pattern bytes.
• Case-insensitive Unicode — 2-byte wide-char units folded via std::towlower.

Search Scope

Each node is searched across three data views:

1. body() — raw payload
2. header() — only when searchHeaders = true
3. uncompressedData() — if non-empty (decompressed content)

Node metadata (name(), text()) is also checked for text and Unicode patterns; metadata matches report matchOffset = 0.

Intel FIT Parser

FitParser.hpp locates and decodes the Intel Firmware Interface Table present in SPI flash images.

FIT Pointer Location

The FIT pointer is a 64-bit physical address stored at image_base + image_size - 0x40. The image is assumed to map to the physical range [0x100000000 - image_size, 0x100000000).

FIT Entry Types

BootGuard Status

FIT output is appended to the GUI details pane when an image is loaded.

Live UEFI Variables

vars reads the firmware variables of the machine it runs on. This is the practical answer to a problem that has no other solution on recent hardware: the variable stores in an update image are always blank, and a flash dump needs an Intel Flash Programming Tool build that matches the chipset — which for platforms newer than the last public CSME release simply does not exist outside OEM channels.

Windows exposes the variables directly, so none of that applies. There is no chipset support matrix, no SPI access, and no vendor tooling.

Mechanism

Administrators hold SE_SYSTEM_ENVIRONMENT_NAME but it is disabled in the token by default, which is why an elevated process still gets ERROR_PRIVILEGE_NOT_HELD until it is switched on explicitly.

Enumeration returns a chain of records: a 32-bit offset to the next record, a vendor GUID, and a NUL-terminated wide name. A zero offset marks the last one.

Output

UEFIExtract.exe vars Setup

SaSetup      {72C5E28C-7783-43A1-8767-FAD73FCCAFA4}    853 B  attr 0x00000007
CpuSetup     {75E3088B-88BB-490F-AA29-FAA83244E8E3}   1311 B  attr 0x00000007
Setup        {EC87D643-EBA4-4BB5-A1E5-3F3E36B20DA9}   1330 B  attr 0x00000007
PchSetup     {4570B7F1-ADE8-4943-8DC3-406472842384}   2281 B  attr 0x00000007

Requires Administrator rights and a UEFI-booted system; a legacy-BIOS boot has no variables to enumerate.

Live BIOS Read

readbios reads the BIOS SPI flash region from a running Intel platform using Intel's Flash Programming Tool (FPTW64).

Prerequisites

Execution Flow

1. DetectPch() — scans PCI devices, returns PchInfo with fptwName (e.g. FPTW64_CSME_v12r38.exe) and meVersion string.
2. RunFptw() — extracts the matching FPTW64 executable from the bundled in-memory 7z archive, runs it, monitors stdout for percentage lines (progress callback 0–100).
3. On success, the dumped ROM is saved (default: bios_dump.rom next to the EXE, or -o <path>).
4. The ROM is then parsed by FfsParser and a report + dump are generated automatically.

CLI Progress Display

The prefix Reading BIOS: is printed once. A 7-character dynamic suffix (NNN% <spinner>) is updated at 100 ms intervals by backspacing over the previous value. The spinner characters are -\|/.

Chipset Coverage

PchDetect maps the PCI device ID of the LPC/eSPI controller to the FPTW64 build that supports it, from Sandy Bridge through Lunar Lake. Because Intel revises these tools without changing what they do, an exact filename match is not required: if FPTW64_CSME_v19r1.exe is absent, any archive entry beginning FPTW64_CSME_v19 is accepted.

There is a hard limit that no amount of detection can work around. Intel's last publicly released CSME System Tools branch is 16.x, so platforms newer than Raptor Lake have no obtainable FPTW64. On Meteor Lake and Lunar Lake the tools that do exist answer:

Error 39: PCH is not supported.
Error 623: Unknown hardware platform.

The device IDs are mapped and the code is ready, but the tool itself is not available outside OEM channels. For reading current settings on such a machine, vars does the job without any Intel tooling at all.

Common Failure Causes

• Not running as Administrator
• MEI driver not installed or disabled in BIOS
• Flash descriptor has BIOS region read protection enabled (common on locked OEM systems)
• No FPTW64 build exists for the platform — see Chipset Coverage above

Dump Modes

FirmwareDumper supports six extraction modes controlled by DumpOptions::mode:

File Naming

FileNamingStrategy generates names from the node's text, name, or GUID string. Illegal filesystem characters are stripped. Collisions are resolved by appending a counter suffix. Extended names are enabled by default.

Filters

DumpOptions::guidFilter — if non-empty, only nodes whose GUID string matches are dumped.
DumpOptions::sectionTypeFilter — if not 0xFF, only sections whose raw type byte matches are dumped.

Report Generator

ReportGenerator produces two output formats from the parsed tree:

Both are generated by the default <image> command and by <image> all. Each can be requested independently with the report or guids sub-commands.

Surgical Patching

FirmwareImage::PatchNode() replaces a node's body bytes in the original buffer.

Constraints

• newBody.size() must be ≤ node.body().size(). Expansion is not supported.
• Bytes from newBody.size() to node.body().size() are filled with 0xFF (erased flash state).

Checksum Update

When the FFS file header has FFS_ATTRIB_CHECKSUM (bit 0x40) set in the Attributes byte (offset 19 of the 24-byte FFS header), the IntegrityCheck.File byte (offset 17) is recomputed:

IC1 = (uint8_t)(0 - sum_of_all_body_bytes)

This maintains the invariant sum(body) + IC1 = 0 mod 256. The IntegrityCheck.Header byte (offset 16) is computed over the header with IC1 = 0 and is therefore unaffected by body changes.

The GUI exposes this via the Replace Body context menu item.

Build System

Building

.\build.ps1

Requires Visual Studio 2026 with the C++ Desktop workload and vswhere.exe present in %ProgramFiles(x86)%\Microsoft Visual Studio\Installer\.

Dependencies

All build-time dependencies are bundled in the source tree; no package manager or external download is required to compile.

archiveint.dll is the libarchive that ships inside Windows 11. It is loaded at run time, never linked, and its absence is not fatal: only Dell PFS extraction and readbios depend on it, and both report a clear error rather than failing obscurely. No zlib sources are vendored — see Compression Support for how a zlib stream is read through a library that does not export inflate.

Source Code Structure

src/
├── main.cpp                     Entry point: mode dispatch, console attach/inject-Enter
├── CliRunner.cpp / .hpp         CLI command parsing and dispatch
├── Analysis/
│   ├── BiosSettingFinder.hpp    biosfind: query parser, scorer, candidate extractor
│   ├── FitParser.hpp            Intel FIT parser (header-only)
│   ├── PeAnalyzer.cpp / .hpp    PE/TE image analysis helpers
│   └── SearchEngine.hpp         Multi-pattern search engine (header-only)
├── Common/
│   ├── ErrorHandling.hpp        ErrorCode enum, Result<T> = std::expected<T, ErrorCode>
│   ├── GuidUtils.hpp            GUID ↔ string conversion
│   ├── StringUtils.cpp / .hpp   UTF-8 / wide string conversion
│   ├── Types.hpp                ByteBuffer, ByteView, Guid, String type aliases
│   └── WinApiUtils.cpp / .hpp   File I/O, directory creation, full path resolution
├── Compression/
│   ├── EfiTianoDecompress.c / .h   EFI standard (Tiano) decompressor
│   ├── LzmaDecompress.c / .h       LZMA wrapper
│   ├── UefiDecompressor.cpp / .hpp High-level decompress API
│   ├── WinArchive.cpp / .hpp        Binding to the in-box Windows libarchive; zlib inflate
│   └── SDK/C/                      LZMA SDK (7-Zip) C sources
├── Dumper/
│   ├── FileNamingStrategy.cpp / .hpp  Node → filename generation with collision avoidance
│   └── FirmwareDumper.cpp / .hpp      Tree walk → file extraction
├── Firmware/
│   ├── DellPfs.cpp / .hpp       Dell PFS containers + Intel BIOS Guard reassembly
│   ├── FfsParser.cpp / .hpp     FV + FFS + Section recursive parser
│   ├── FirmwareImage.cpp / .hpp Image load, buffer ownership, PatchNode()
│   ├── NodeType.cpp / .hpp      Node type and subtype enums
│   ├── NvramParser.cpp / .hpp   VSS / VSS2 / FTW / EVSA / NVAR variable stores
│   ├── TreeNode.hpp             Node data model (type, GUID, views, children)
│   └── VendorLoader.hpp         Vendor wrapper detection and stripping (header-only)
├── IFR/
│   ├── EFI.cpp / .h             EFI IFR protocol decoder
│   ├── IFRBridge.cpp / .hpp     Protocol detection, ExtractIFR() entry point
│   ├── UEFI.cpp / .h            UEFI IFR protocol decoder
│   └── util.h                   IFR utility types
├── Report/
│   └── ReportGenerator.cpp / .hpp  Text report and GUID CSV generation
├── UI/
│   ├── MainWindow.cpp / .hpp    Application main window: controls, tree, hex, search, IFR
│   └── ModernWindow.cpp / .hpp  Win32 base window with DWM/Mica styling
└── Utils/
    ├── FptwRunner.cpp / .hpp    FPTW64 extraction from 7z archive + execution + progress
    ├── PchDetect.cpp / .hpp     Intel PCH detection via SetupAPI
    └── UefiVariables.cpp / .hpp Live UEFI variable enumeration and reading

Error Codes

RunCli() and most internal operations return or propagate these codes as process exit values:

Troubleshooting

"No UEFI firmware volumes found"

Symptom: CLI prints the error and exits with ParseError.

Solutions:

1. Verify the file is a raw UEFI SPI dump, not a compressed update package. Try the vendor's own extraction tool first if the file has an .exe or .cab extension.
2. If it is an EXE-based update, UEFIExtract's vendor unwrapper scans 512-byte-aligned offsets for _FVH or Intel FD magic. A non-standard update format may not be detected — in that case extract the raw ROM manually with 7-Zip or binwalk.
3. Confirm the file is not truncated: a typical full BIOS dump is 4–32 MB.

IFR Scan Returns No Matches

Symptom: ifrscan reports No IFR matches found.

Solutions:

1. Some BIOS images store HII resources only in compressed sections. Verify the image parsed correctly and that the report shows Compression or GUID Defined sections — these are decompressed automatically and should contain IFR.
2. Very old BIOSes (pre-UEFI) may use vendor-specific form encoding not covered by EFI or UEFI IFR protocols.

biosfind Returns No Candidates

Symptom: Command exits with No BIOS setting candidates found.

Solutions:

1. Run ifrscan first to confirm IFR is present at all.
2. The minimum score threshold is 260. Try a shorter or more specific query — single distinctive words outperform phrases containing generic tokens (lock, enable, mode).
3. If multiple phrases are needed, separate them with commas: UEFIExtract image.rom biosfind "CFG Lock, overclocking lock".

readbios Fails: PCH Not Detected

Symptom: Error: Intel PCH not detected via SetupAPI.

Solutions:

1. Run only on Intel platforms. AMD systems are not supported.
2. Confirm Intel MEI/ME driver is installed (visible in Device Manager as "Intel Management Engine Interface").
3. Some virtualized environments do not expose the PCH PCI device — run on physical hardware.

readbios Fails: FPTW64 Error

Symptom: Error: FPTW64 failed to dump BIOS.

Solutions:

1. Run UEFIExtract.exe as Administrator. FPTW64 requires direct hardware access.
2. Confirm data archive is present next to the EXE. If missing, download from https://kvc.pl/data.
3. Some platforms have the BIOS region locked in the flash descriptor. In that case FPTW64 exits with a region access error — the lock can sometimes be lifted by enabling an OEM unlock option in BIOS settings, or by using an unlocked descriptor (advanced, hardware risk).

GUID Targeted Extraction: 0 Items Dumped

Symptom: [+] Target {GUID} dumped 0 items to: ...

Solutions:

1. Verify the GUID string format: XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX. Curly braces are accepted but not required.
2. Run guids sub-command first to obtain the exact GUID strings present in the image: UEFIExtract image.rom guids.
3. Check -t <type> filter — if set, only matching section types within the file are extracted. Omit -t to extract everything.

Patched Image Fails to Boot

Symptom: After Replace Body, the firmware does not boot.

Considerations:

1. Only the body bytes and the FFS IntegrityCheck.File field are updated. Secure Boot signatures and other integrity measurements (BootGuard BP hash) are not recomputed — a modified image will fail measured boot on BootGuard-protected platforms.
2. The replacement body must fit within the original body size. Larger bodies are not supported.
3. Decompressed section contents cannot be re-compressed — patching works only on uncompressed sections.

License

Apache License 2.0

Full text available in project repository (LICENSE file).

Disclaimer

WARNING: This tool accesses raw firmware data and can interact with system hardware (FPTW64 flash read). It is provided for research, analysis, and educational purposes. Incorrect use — especially with readbios on locked or production systems — may result in system instability. Use at your own risk.

All trademarks, logos, and brand names are the property of their respective owners. Intel, Management Engine, and related marks are trademarks of Intel Corporation.

Last updated: 2026-04-19

Add a comment

Name (optional)

Email (optional, never published)

Comment *

Type the characters from the image *

Submit
