2026-03-24 — LAN Pair TrustedInstaller + Language override

TrustedInstaller impersonation is now correctly applied on every LAN Pair connect. On the Donor (server) side, incoming Receiver connections are served under TI impersonation — granting read/write access to C:\Windows\ and other system-owned files. On the Receiver (client) side, a TI RAII scope wraps local file access during transfers, enabling download to and upload from TI-protected local paths. DPAPI trust keys now use CRYPTPROTECT_LOCAL_MACHINE for TI-compatible decryption. Language override: add Language= to [Configuration] in sftpplug.ini to force the plugin UI language (e.g. Language=fin for a custom Finnish translation). Custom .lng files are fully supported — any value not matching a built-in code is loaded as language\<value>.lng from the plugin directory. A configuration template sftpplug.tpl is now included in the package.

2026-03-22 — LAN Pair auto-pairing wizard (60-second countdown)

The Auto role in LAN Pair mode now shows a guided 60-second countdown dialog instead of a silent one-shot attempt. The plugin starts listening in the background and waits up to 60 s for a peer to appear. When found, a Donor / Receiver / Cancel prompt appears. On timeout or Cancel, the receiver is stopped automatically — no orphaned open ports. UDP broadcast interval extended from 1.5 s to 2 s for improved stability. All new strings fully localized (15 languages).

2026-03-21 — PHP Agent TAR batch download + sftp.php update required

Users with the TAR stream option enabled may have experienced silent batch download failures (0 files), HTTP 504 timeout on OVH / home.pl, or upload failures for archives exceeding 4 GB.
All three are now fixed. Upload the updated sftp.php from the plugin directory to your server before using TAR batch download.

2026-03-13 — Visual C++ Redistributable dependency removed

Previous builds reported "Error loading plugin file! The plugin probably needs some DLLs missing" on clean systems. Fixed: argon2 and libssh2 rebuilt from source with /MT (static CRT). No external DLLs required.

Secure FTP Plugin for Total Commander

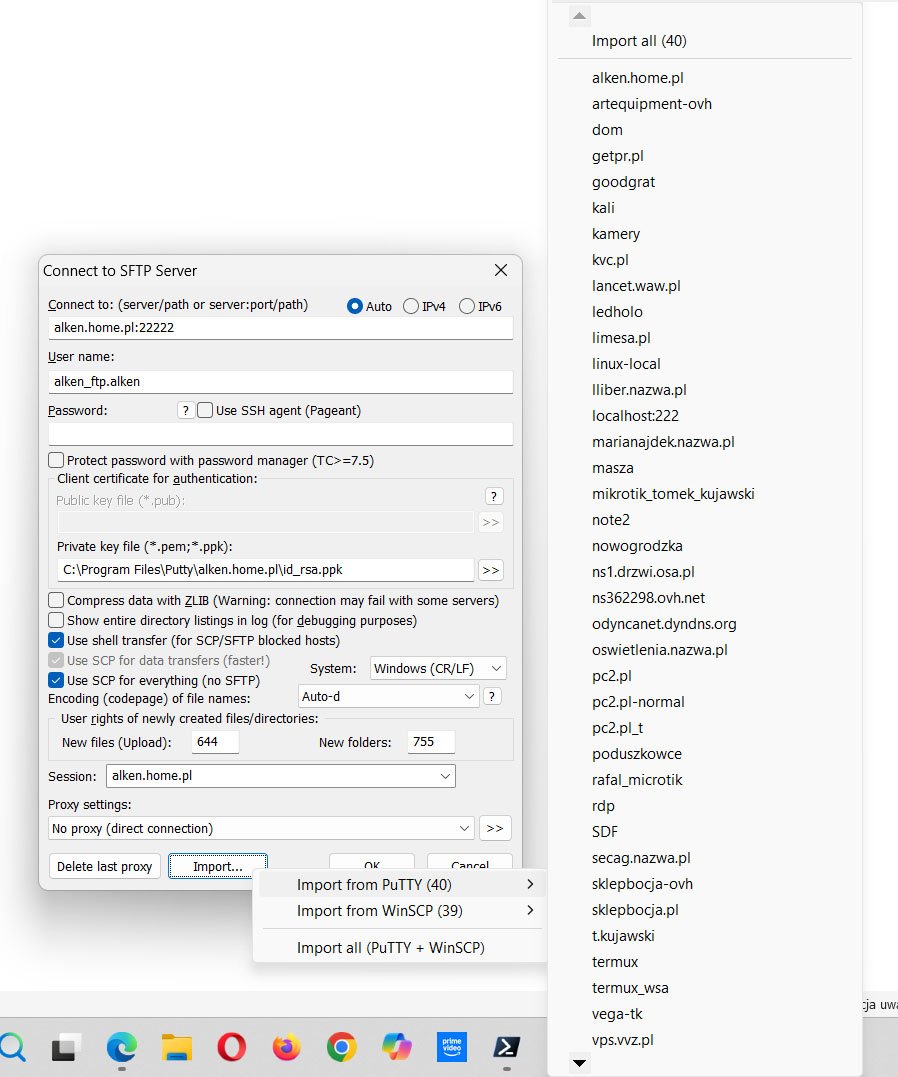

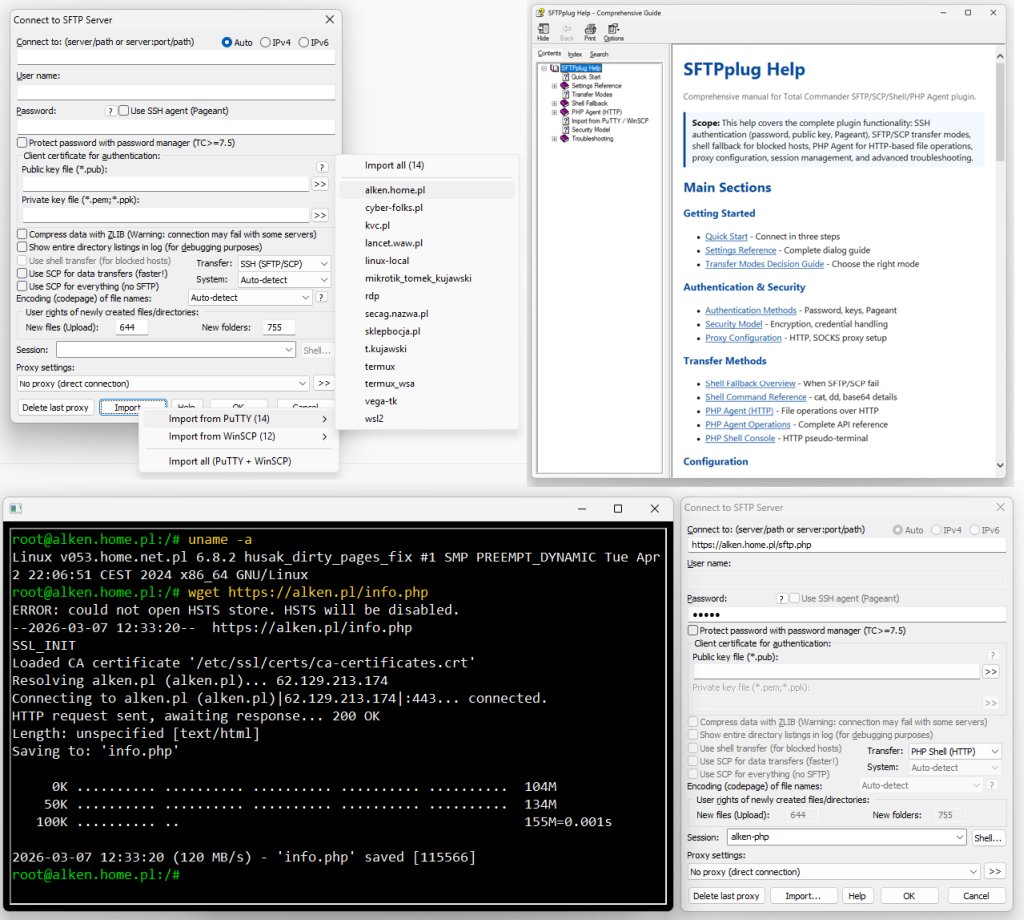

SFTP Plugin Demo

**Modern C++20 SFTP/SCP implementation focused on compatibility-first transfer paths** *Complete C-to-C++ rewrite with native PPK v2/v3 decoding, robust shell transfer fallback (`cat`/`dd`/`base64` chunk pipelines), and standalone PHP Agent HTTP mode (`sftp.php`) for hosts without working SSH/SFTP access.* *The plugin can switch between native SFTP, SCP, shell chunk transfer, PHP chunk transfer, and LAN Pair depending on real server constraints and deployment topology, including restrictive hosting environments and Windows-to-Windows local pairing.* *It also provides a pseudo-shell over HTTP (PHP Shell mode) backed by `SHELL_EXEC` in `sftp.php`, with command history and working-directory aware execution for operational tasks on restricted hosts.* **Based on the original SFTP plugin by Christian Ghisler; most core modules were re-engineered and rewritten from scratch in modern C++ with an independent architecture and compatibility-focused execution model.**

📚 Table of Contents


Feature Overview

This plugin is a complete C++20 rewrite of the original SFTP plugin by Christian Ghisler (creator of Total Commander). The original C implementation served as the foundation, but has been completely re-engineered with modern C++ patterns, enhanced security features, and extended functionality.

This plugin targets Total Commander on Windows x64 and x86 and provides comprehensive secure file transfer capabilities:

Core Transfer Protocols

  • SFTP (primary) with resume support and streaming transfers
  • SCP (native) with >2GB file detection for 64-bit servers
  • Shell Transfer Fallback (DD/base64) for restricted hosts blocking SFTP/SCP
  • Jump Host / ProxyJump for bastion-routed SSH access without external ssh.exe
  • PHP Agent (HTTP) standalone transfer mode for hosts without SSH account access; directory uploads and batch file downloads transferred as a single TAR stream (opt-in via php_tar checkbox) — replaces thousands of individual HTTP requests with one POST/GET
  • PHP Shell (HTTP) pseudo-terminal for command execution via the same single-file agent — with persistent command history (Up/Down arrows, 128-entry ring buffer, stored in %APPDATA%\GHISLER\shell_history.txt)
  • LAN Pair direct Windows-to-Windows pairing mode; Donor role runs as file server (waits for incoming Receiver), Receiver role connects as client; Auto role shows a 60-second guided pairing wizard — finds the peer, prompts connect-as-Receiver or stay-as-Donor, stops cleanly on timeout; optional TrustedInstaller impersonation for system-protected file access on both sides

Authentication Methods

  • Password authentication with Keyboard-Interactive support
  • Public key authentication (PEM/OpenSSH format)
  • Native PPK v2/v3 decoding without external tools
  • Pageant (SSH Agent) integration with auto-launch

Advanced Features

  • Session import from PuTTY and WinSCP registry; PuTTY Portable folder (auto-finds putty.reg recursively) and WinSCP.ini file
  • KiTTY Portable import — auto-finds Sessions folder recursively; stored passwords automatically decrypted and saved as DPAPI
  • Comprehensive proxy support (HTTP CONNECT, SOCKS4/4a/5)
  • Remote checksum calculation (MD5, SHA1, SHA256, SHA512)
  • Automatic UTF-8 and line ending detection
  • Host key fingerprint verification
  • Built-in CHM help (sftpplug.chm) available from the plugin dialog via the Help button
  • External .lng file localization — 15 languages (EN/PL/RU/DE/FR/ES/IT/CS/HU/NL/PT-BR/RO/SK/UK/JA/ZH-CN) — dynamic dialog translation at runtime, auto-detected from TC wincmd.ini, language-aware control layout (ArrangeInlineRow)

Design Priorities

  1. Practical interoperability on heterogeneous SSH servers
  2. Deterministic failure behavior (timeouts, cleanup, no hidden loops)
  3. Modern C++ architecture with RAII and interface abstraction
  4. Zero external dependencies — libssh2 and Argon2 both rebuilt from source with /MT (static CRT), no VC++ Redistributable required

Architecture

Layered Structure

flowchart TD A[TC WFX API] --> B[Entry Points] B --> C[SSH Layer] B --> D[Transfer Layer] B --> L[LAN Pair] C --> C1[Network/Proxy/Jump] C --> C2[Auth/Session] C --> C3[Dialog/Settings] D --> D1[SFTP/SCP/Shell] D --> D2[RemoteOps/Utils] D --> D3[PHP Agent/Shell] L --> L1[LanPair Session] C1 --> E[ISshBackend] C2 --> E D1 --> E D2 --> E E --> F[Libssh2] B --> G[IUserFeedback] G --> H[Win32 UI]
WFX API Layer
  ↓
Plugin Entry Points (FsFindFirst/FsGetFile/FsPutFile/FsExecuteFile/...)
  ↓
┌─────────────────────────────────────────┐
│  Business Logic Layer                   │
│  ├─ ConnectionNetwork / ProxyNegotiator │
│  ├─ ConnectionAuth / SessionPostAuth    │
│  ├─ SFTP / SCP / Shell fallback         │
│  ├─ PHP Agent (HTTP) / PHP Shell        │
│  └─ UI Separation (IUserFeedback)       │
└─────────────────────────────────────────┘
  ↓
ISshBackend Interface (ISshSession/ISshChannel/ISftpHandle)
  ↓
Libssh2Backend Implementation (libssh2)

ABI Exception Barrier

Every exported Fs* function is wrapped by DllExceptionBarrier — a stack-local RAII firewall that prevents any C++ exception from crossing the ABI boundary into Total Commander (which would crash the host immediately):

  • Exception caught → current operation aborted, error code returned to TC
  • Stack trace captured via Windows DbgHelp (CaptureStackBackTrace + SymFromAddr), SRWLOCK-serialised, lazy-initialized
  • Exception stored as std::exception_ptr without RTTI (/GR- build)
  • User sees a MessageBoxW with error type and call location
  • TC continues running — a plugin bug cannot crash the host process

Why This Architecture Matters

Backend Abstraction via ISshBackend
Polymorphic interfaces (ISshSession, ISshChannel, ISftpHandle) decouple the plug-in from direct libssh2 calls. This enables:

  • Future backend migration without rewriting business logic
  • Potential multi-backend support (libssh2, libssh, etc.)
  • Easier unit testing via mock implementations

RAII Memory Management
Extensive use of std::unique_ptr for session/channel objects and handle_util::AutoHandle<HANDLE> for Windows file handles. ConnectionGuard RAII in PluginEntryPoints.cpp ensures new connections are always cleaned up on any error path in FsFindFirstW — no resource leaks even on early returns or exceptions.

UI Separation via IUserFeedback
The IUserFeedback pattern (implemented by WindowsUserFeedback) separates transfer/connection logic from MessageBox dialogs, improving background thread stability in Total Commander's multi-threaded environment.


Connection Lifecycle

flowchart LR Start[Read TC Lang] --> UI[UI Language] Profile[Resolve Profile] --> T{Transport} T -->|LAN Pair| LP[Discovery] LP --> LS[Connect] LS --> Ops[Operations] T -->|PHP| PH[HTTP Auth] PH --> Ops T -->|SSH| S[Socket] S --> P{Proxy?} P -->|Yes| PN[Negotiate] P -->|No| J{Jump?} PN --> J J -->|Yes| JH[Auth] JH --> JT[Tunnel] JT --> I[Init SSH] J -->|No| I I --> F[Fingerprint] F --> A[Auth] A --> M{Submode} M -->|SFTP| SI[SFTP Init] M -->|SCP| SC[SCP Path] M -->|Shell| SH[Shell Path] SI --> Ops SC --> Ops SH --> Ops

Operational Requirements:

  • No unbounded EAGAIN loops
  • Readiness checks in all network loops
  • Stage timeout per critical phase (connect/auth/read)
  • Cleanup on every failing exit path

File Transfer Capabilities

Standard SFTP & Native SCP

Feature Description
SFTP Protocol Full support for downloading/uploading via SFTP subsystem
SCP Protocol Native SCP for servers without SFTP
Transfer Resume Resume interrupted SFTP transfers
Encoding Detection Auto-detect UTF-8 and line endings (CRLF vs LF)
Permissions Remote chmod for file permissions
Timestamps touch command support via SCP console

Shell DD / Base64 Fallback (New!)

Advanced workaround for servers with blocked SFTP subsystem and unavailable scp command. Uses hidden interactive channel for transfers.

sequenceDiagram participant L as Local participant P as Plugin participant C as SSH Channel participant S as Server L->>P: Read chunk P->>P: Base64 encode P->>C: Send payload C->>S: printf + base64 -d S-->>C: Output C-->>P: Parse

Upload Path:

  1. Split local data into chunks
  2. Base64 encode each chunk
  3. Send via printf '%s' | base64 -d through shell channel
  4. Decode and append server-side

Download Path:

  1. Try fast path via cat
  2. Fallback to base64 -w 0 when needed
  3. Incremental decode (streaming, no full-file buffering)

Throughput Note: Base64 adds ~33% overhead. Native SFTP/SCP is faster. Shell fallback is compatibility-first, not speed-first.

SCP > 2GB File Support

Detection Method Implementation
64-bit Server Check file and which scp commands
Transfer Mode Automatic adjustment for large files
Fallback Shell transfer if SCP limit detected

Remote Checksum Support

Calculate file hashes directly on the server without local computation:

Algorithm Command
MD5 md5sum / md5 -q
SHA1 sha1sum / sha1 -q
SHA256 sha256sum / shasum -a 256
SHA512 sha512sum / shasum -a 512

Authentication System

Supported Methods

  • Password - Traditional password authentication
  • Keyboard-Interactive - With password change request handling
  • PEM (OpenSSH) - Traditional private key format
  • PPK v2/v3 - Native PuTTY format decoding (New!)
  • Pageant - SSH Agent integration

Native PPK v2 & v3 Decoder

Native parsing of PuTTY Private Key files without external tools or DLLs — Argon2 is statically compiled into the plugin:

Component PPK v2 PPK v3
Key Derivation SHA-1 based (BCrypt) Argon2d/i/id (BCrypt + built-in Argon2)
Encryption AES-256-CBC AES-256-CBC
MAC Validation HMAC-SHA-256 HMAC-SHA-256
Output Format Traditional PEM for libssh2 Traditional PEM for libssh2
External DLL None needed None needed — Argon2 statically linked with /MT

Authentication Fallback Strategy

flowchart TD Start[Start Auth] --> P1{Pageant?} P1 -->|Yes| P2[Pageant] P1 -->|No| K1[Key File] P2 -->|OK| Done[✓ Auth] P2 -->|Fail| K1 K1 -->|OK| Done K1 -->|Fail| K2{Kbd-Int?} K2 -->|Yes| K3[Kbd-Int] K2 -->|No| PW[Password] K3 -->|OK| Done K3 -->|Fail| PW PW -->|OK| Done PW -->|Fail| Err[✗ Failed]

Key-Path Validation (Fail-Fast)

Condition Behavior
Missing privkeyfile Immediate local error (no fallback stall)
Missing pubkeyfile (explicit) Immediate local error
Invalid PPK format Precise error with MAC/KDF details

This avoids minute-long UI freezes on impossible auth attempts.

Pageant Integration

  • Full integration with PuTTY Pageant
  • Auto-launch pageant.lnk when needed
  • Seamless fallback to file-based auth if agent unavailable

Security & Password Storage

Storage Modes

Mode Format Description
TC Master password=! TC CryptProc API
DPAPI password=dpapi:... Windows DPAPI
Plaintext password=plain:... Explicit marker
Legacy XOR (legacy) Read-only compat
graph LR A[Password] --> B{TC Master?} B -->|Yes| C[CryptProc] B -->|No| D[DPAPI] D --> E[CryptProtect] C --> F[Encrypted INI] E --> F

Security Enhancements

Feature Implementation
Primary Encryption DPAPI (CryptProtectData)
TC Integration CryptProc API when available
Legacy Support XOR read-only (compatibility)
PPK v3 Keys Argon2 key derivation
Memory Handling Secure zeroing of sensitive buffers

Connection Management

Session Import (New!)

Import configurations from multiple sources:

Source Method
PuTTY (installed) HKCU\Software\SimonTatham\PuTTY\Sessions registry
WinSCP (installed) HKCU\Software\Martin Prikryl\WinSCP 2\Sessions registry
PuTTY Portable Folder picker → auto-finds putty.reg recursively (up to 4 levels), parses and converts to INI on the fly
WinSCP Portable File picker → reads WinSCP.ini directly
KiTTY Portable Folder picker → auto-finds Sessions folder recursively (up to 4 levels); individual session files; only SSH sessions imported; stored passwords decrypted and saved as DPAPI

Import Features:

  • Non-conflicting conversion to plugin INI format
  • Preserves connectivity fields (host, port, user, keys)
  • KiTTY passwords — automatically decrypted via dp.exe (embedded as LZX CAB RCDATA resource; extracted on first use via Windows FDI API; Defender path and process exclusion added before extraction via WMI/COM — no PowerShell)
  • Checkbox picker dialog — select any combination of sessions and import in one step
  • 4-path memory — the last 4 used folder/file paths are remembered and pre-selected on next open
  • No auto-connect side effects during import

Proxy Support

Type Authentication
HTTP CONNECT Basic auth
SOCKS4 None
SOCKS4a None
SOCKS5 None / Username-Password

LAN Pair — ports and trust model

Port Protocol Purpose
45845 UDP broadcast Peer discovery (2 s interval)
45846 TCP Pairing handshake + file transfer

Authentication uses TOFU (Trust On First Use):

  • First connection: pairing password required on both sides; key derived via PBKDF2-HMAC-SHA256 (120,000 iterations)
  • Trust token stored encrypted via Windows DPAPI per peer-pair and Windows user account
  • Subsequent connections: automatic — no password prompt

Both ports must be allowed in Windows Firewall on both machines. UDP broadcast is blocked between VLANs/subnets by default.

LAN Pair Roles

Role INI value Behavior
Auto lanpairrole=0 Guided 60-second wizard — starts local file server, waits for peer, then prompts: connect immediately (Receiver/client) or stay as Donor/server
Receiver lanpairrole=1 Client mode — connects to the Donor's file server. Does not start a local server. Use this on the machine that will browse files from the Donor.
Donor lanpairrole=2 Server mode — starts the local LAN Pair file server and waits for an incoming Receiver connection. Does not initiate outgoing connections. Use this on the machine whose files you want to access remotely.

Which role for which machine? The Donor is the machine that has the files — it runs as server and waits. The Receiver is the machine that connects and browses — it acts as client. Both machines must run Total Commander with this plugin.

TrustedInstaller Impersonation

The Trusted Installer checkbox in the LAN Pair connection settings lets the file server impersonate the Windows TrustedInstaller service account, granting access to system-protected files (e.g. C:\Windows\, C:\Program Files\WindowsApps\).

Role Effect
As Donor (server) Incoming Receiver connections are served under TI impersonation — the Receiver can read, write, delete, and rename TI-owned files on this machine
As Receiver (client) File transfers run under TI impersonation locally — you can download files to TI-protected local directories and upload files from TI-protected local paths

To work with TI-protected files on the remote machine (the Donor), the checkbox must be enabled on the Donor's connection profile.

Requirements: TC must be running with SeDebugPrivilege (standard elevated Administrator token); the TrustedInstaller Windows service must be startable (the plugin starts it automatically if needed).

DPAPI note: Trust keys are stored via CryptProtectData with CRYPTPROTECT_LOCAL_MACHINE — this ensures the key is decryptable in any impersonation context, including TrustedInstaller, without binding to a specific Windows user session.

Auto-Pairing Wizard

When the role combo is set to Auto and the user clicks Pair…, the plugin starts a guided wizard:

  1. Receiver listening immediatelyPairServer starts on TCP 45846 in the background.
  2. 60-second countdown dialog — a modal "Searching for LAN Pair peer on local network…" window with a live seconds counter and a Cancel button.
  3. Peer detected — the countdown closes automatically; a role-selection prompt appears:
    • Yes — connect to the discovered peer immediately (this machine acts as Receiver / client).
    • No — stay as Donor / server; the local file server keeps running.
    • Cancel — server stopped, status bar updated.
  4. Timeout or Cancel — receiver stopped automatically. No orphaned open ports.

All dialog text is loaded from the external .lng file — fully localized in all 15 supported languages.

Network Features

  • IPv4 / IPv6 dual-stack support
  • Custom port configuration
  • Host key verification with fingerprint storage
  • Jump Host / ProxyJump for SSH targets behind bastion hosts
  • First-time connection warnings
  • Fingerprint changed alerts

Shell Engineering Highlights

Marker-Aware SCP Parsing

Real-world SSH servers differ in shell behavior. KVC handles edge cases:

Technique Purpose
__WFX_LIST_BEGIN__ Directory listing start marker
__WFX_LIST_END__ Directory listing end marker
echo $? Exit code detection
Defensive parsing Skip echoed commands/prompts

Restricted Shell Handling

Scenario Solution
Blocked SFTP Shell transfer fallback
No scp command cat / dd / base64
Noisy prompts Buffer filtering
Delayed output Staggered read timeouts

PHP Agent — TAR Batch Transfers

When the TAR stream checkbox is enabled in the connection profile, all directory copies and batch file transfers use a single TAR HTTP round-trip instead of individual PUT/GET requests. This eliminates per-request overhead critical on shared hosting (OVH, home.pl) where even small files cost a full HTTP round-trip.

Batch Download (TAR_PACK)

TC's FsStatusInfo GET_MULTI / GET_MULTI_THREAD session is intercepted — each FsGetFileW call queues the remote path into TarDownloadSession. When the batch ends, a single POST to ?op=TAR_PACK is sent with all remote paths (newline-separated in the body). The server streams the ustar TAR directly to php://output with no buffering. The plugin parses the TAR on the fly, writing files as each entry arrives.

sequenceDiagram participant TC as Total Commander participant P as Plugin participant S as sftp.php Note over TC,P: Batch download (GET_MULTI) TC->>P: FsStatusInfo GET_MULTI START P->>P: TarDownloadSessionBegin TC->>P: FsGetFileW (file 1..N) P->>P: TarDownloadSessionQueue TC->>P: FsStatusInfo GET_MULTI END P->>S: POST ?op=TAR_PACK S-->>P: ustar TAR stream P->>P: Parse TAR → write local files

Batch Upload (TAR_EXTRACT)

TC's FsStatusInfo PUT_MULTI / PUT_MULTI_THREAD session is used to collect all files. The plugin runs a first pass to compute the exact total size, then streams the complete POSIX ustar TAR in a single WinHTTP POST to ?op=TAR_EXTRACT. Content-Length is sent as a proper 64-bit header value — no overflow for archives exceeding 4 GB. The server script extracts files on-the-fly — no temporary files created on the server.

sequenceDiagram participant TC as Total Commander participant P as Plugin participant S as sftp.php Note over TC,P: Batch upload (PUT_MULTI) TC->>P: FsStatusInfo PUT_MULTI START P->>P: TarUploadSessionBegin TC->>P: FsPutFileW (file 1..N) P->>P: TarUploadSessionQueue TC->>P: FsStatusInfo PUT_MULTI END P->>S: POST ?op=TAR_EXTRACT (TAR stream) S-->>P: { "extracted": N }

Both directions support GNU LongLink (././@LongLink) for paths longer than 99 characters. Files exceeding 8 589 934 591 bytes (POSIX ustar octal limit) are skipped cleanly without corrupting the rest of the archive.

Operation HTTP Body
TAR_PACK POST Newline-separated relative paths
TAR_EXTRACT POST ustar TAR stream with Content-Length
TAR_STREAM GET

PHP Shell — Command History

The PHP Shell console (PHP Shell (HTTP) mode) maintains a persistent command history that survives session restarts and plugin reloads.

Navigation

Key Action
Up arrow Recall previous command
Down arrow Move forward through history ( past the last entry clears the input line)

Storage location

%APPDATA%\GHISLER\shell_history.txt

This is the same directory Total Commander uses for its own configuration. The file is plain UTF-8, one command per line, and can be opened in any text editor.

Capacity — ring buffer

The file holds a maximum of 128 entries. When the 129th command is added, the oldest entry is dropped from the top. The file is always rewritten in full on each addition — at 128 short lines this is negligible I/O and eliminates any risk of stale data from a partial write.

Duplicate suppression

Consecutive identical commands are not recorded (equivalent to bash HISTCONTROL=ignoredups). Running the same command twice in a row stores it only once.

Clearing history

History can be cleared from inside the shell console without leaving it:

history -c

or equivalently:

clear history

Both commands erase all entries from memory and delete shell_history.txt from disk immediately. The cursor resets to an empty state. This is the recommended way to clear sensitive command traces — for example, after a password was typed inline by mistake.

Note: exit and logout close the console window but do not clear history — existing entries are preserved for the next session.

Crash and power-loss safety

Each write uses an atomic two-step pattern:

  1. New content is written to a temporary file (shell_history.txt.tmp) in the same directory.
  2. MoveFileExA with MOVEFILE_REPLACE_EXISTING renames the temp file over the real file.

On NTFS, a rename within the same volume is a single metadata operation. If power is lost between steps 1 and 2, the previous shell_history.txt remains intact — it is never truncated or partially overwritten. The worst-case outcome is a leftover .tmp file containing the most recent history, which can be renamed manually if needed.


Module Map (for Maintainers)

Module Responsibility Notes
PluginEntryPoints.cpp TC WFX API entry points ConnectionGuard RAII; every Fs* wrapped via dll_invoke
DllExceptionBarrier.cpp C++ exception firewall at ABI boundary DbgHelp stack trace; lazy init; SRWLOCK-serialised
SftpConnection.cpp High-level connection orchestration Split from legacy monolith
ConnectionNetwork.cpp Socket + low-level network path Isolated network stage
JumpHostConnection.cpp Bastion login + direct-tcpip tunnel setup Dedicated ProxyJump path
ProxyNegotiator.cpp HTTP/SOCKS proxy negotiation Dedicated proxy module
SshSessionInit.cpp SSH session bootstrap Modular session init
ConnectionAuth.cpp / SessionPostAuth.cpp Auth + post-auth session steps Split auth lifecycle
ConnectionDialog.cpp Connect dialog and UI handlers UpdateCertSectionState — unified cert section for all transport modes
SftpAuth.cpp Auth helpers, key-mode selection Native PPK-aware flow
ScpTransfer.cpp Native SCP transfer path Dedicated SCP engine
ShellFallbackTransfer.cpp Shell DD/base64 fallback transfer Compatibility-first fallback
SftpTransfer.cpp Native SFTP transfer path Streaming buffers; ATTR_SIZE resume fix
SftpRemoteOps.cpp Listing, remote file operations Marker-aware parsing; SftpSetAttr (chmod)
SftpShell.cpp Shell channel execution EAGAIN loop guards
TransferUtils.cpp Progress, rate, transfer helpers Shared transfer utility layer
PhpAgentClient.cpp PHP Agent HTTP operations (WinHTTP); TAR batch upload (TarUploadSession, PhpAgentUploadDirAsTar); TAR batch download (TarDownloadSession, PhpAgentDownloadFilesAsTar) PROBE / LIST / GET / PUT / MKDIR / REMOVE / RENAME / CHMOD / STAT / TAR_STREAM / TAR_EXTRACT / TAR_PACK
KittyDecryptDeploy.cpp Embeds dp.exe as CAB RCDATA resource; deploys on first use via FDI; adds Defender path+process exclusion via WMI/COM KittyDecryptDeploy.h
PhpShellConsole.cpp PHP Shell pseudo-terminal; keyboard input, Tab completion, Up/Down history navigation Drives ShellHistory for persistence
ShellHistory.cpp Persistent command history — ring buffer (128 entries), atomic NTFS write, %APPDATA%\GHISLER\shell_history.txt ShellHistory.h; history -c / clear history handlers
SessionImport.cpp PuTTY/WinSCP/KiTTY import; KiTTY password decryption via dp.exe Registry → INI conversion; DPAPI password save
PpkConverter.cpp PPK v2/v3 → PEM conversion BCrypt + Argon2 statically linked
PasswordCrypto.cpp DPAPI encrypt/decrypt, legacy XOR read DataBlob RAII; SecureZeroMemory
Libssh2Backend.cpp SSH backend implementation ISshBackend interface
LanPair.cpp PAIR1 auth, UDP discovery, PBKDF2 TOFU trust; DPAPI key storage
LanPairSession.cpp LAN2 command protocol, file transfer noexcept API; session timeout enforcement
WindowsUserFeedback.cpp UI separation IUserFeedback pattern
CoreUtils.cpp Utility functions (base64, time, strings) Self-contained, no external deps
FtpDirectoryParser.cpp Directory listing parser Unicode-aware; December month fix

Source Tree (Local Repo)

Current local layout (without publishing source code):

build.ps1                  # Build script at project root
bin/
  SFTPplug.zip             # Only output after build (intermediate dirs removed)
build/
  SFTPplug.vcxproj
  SFTPplug.sln
  SFTPplug.vsprops
src/
  agent/
    sftp.php
  core/
    DllExceptionBarrier.cpp
    Connection*.cpp
    JumpHostConnection.cpp
    LanPair.cpp / LanPairSession.cpp
    ProxyNegotiator.cpp
    SshSessionInit.cpp
    Sftp*.cpp
    ScpTransfer.cpp
    ShellFallbackTransfer.cpp
    PpkConverter.cpp
    PasswordCrypto.cpp
    ...
  help/
    *.html                 # CHM source (compiled to src/help/sftpplug.chm)
    sftpplug.hhp/hhc/hhk
    readme.txt
  include/
    DllExceptionBarrier.h
    ISshBackend.h
    ...
  res/
    sftpplug.rc            # EN/PL/DE/FR/ES string tables
    kitty-decrypt.cab      # dp.exe packed as LZX CAB (RCDATA resource)

System Requirements

Component Requirement
Operating System Windows 7 or later (10/11 recommended)
Total Commander Version 9.0 or later (x64 or x86)
Architecture x64 (SFTPplug.wfx64) and x86 (SFTPplug.wfx)
Compiler Visual Studio 2026 (v145 toolset), C++20
Dependencies libssh2 ≥ 1.11.1 (WinCNG backend) + Argon2 — both rebuilt from source with /MT
External DLLs None — fully static CRT, no VC++ Redistributable required
Windows APIs BCrypt, DPAPI (CryptProtectData), WinHTTP, DbgHelp, Winsock2

Packaging

Distribution package contents:

File Purpose
SFTPplug.wfx64 x64 plugin binary (libssh2 + Argon2 statically linked, /MT)
SFTPplug.wfx x86 plugin binary (libssh2 + Argon2 statically linked, /MT)
pluginst.inf Total Commander auto-install descriptor (file= x86, file64= x64)
sftp.php Single-file PHP agent for HTTP transfer and shell modes
SFTPplug.chm Full offline help (also opened via plugin Help button)
readme.txt Package notes
sftpplug.tpl Configuration template — copy to sftpplug.ini in the plugin directory to enable Language= override and other [Configuration] settings
language\pol.lng Polish
language\rus.lng Russian
language\deu.lng German
language\fra.lng French
language\esp.lng Spanish
language\ita.lng Italian
language\cs.lng Czech
language\hu.lng Hungarian
language\nl.lng Dutch
language\pt-br.lng Brazilian Portuguese
language\ro.lng Romanian
language\sk.lng Slovak
language\uk.lng Ukrainian
language\ja.lng Japanese
language\zh-cn.lng Simplified Chinese

Primary release archive: SFTPplug.zip — no external DLLs required, no VC++ Redistributable needed.
Open it directly in Total Commander and press Enter to trigger the plugin install prompt. TC will automatically install the correct architecture.


PHP Agent Deployment

The release package ships sftp.php — a single-file agent used by both PHP Agent (HTTP) and PHP Shell (HTTP) modes.

Important: The shipped sftp.php has no password configured. Uploading it before saving a session will result in HTTP 503 on every request. Always follow the order below.

Step 1 — Configure and save the session

Open the plugin connection dialog in Total Commander (Net → Connect). Fill in:

Field Value
Connect to Full URL to sftp.php, e.g. https://example.com/sftp.php
Transfer mode PHP Agent (HTTP) or PHP Shell (HTTP)
Password Your chosen shared secret
Session name Any label, e.g. My Hosting

Click Save. The plugin writes a salted SHA-256 hash (AGENT_PSK_SALT + AGENT_PSK_SHA256) into the local sftp.php in the plugin directory. The password itself is never stored in the file.

Step 2 — Upload the modified sftp.php

Copy the local file (now containing your hash) to your server:

...\Total Commander\plugins\wfx\SFTPplug\sftp.php  →  https://example.com/sftp.php

Do not upload the original from the download package — it has empty PSK fields.

Step 3 — Verify the endpoint

Open https://example.com/sftp.php?op=PROBE in your browser:

Response Meaning
HTTP 200 {"status":"ok"} Ready — proceed to connect
HTTP 401 Unauthorized Script running, awaiting auth — also OK
HTTP 503 Service Unavailable PSK not configured — wrong file uploaded; repeat from Step 1
HTTP 404 Not Found Wrong URL or file not uploaded yet

Step 4 — Connect

Select the saved session in Total Commander and connect.

Security model

Location Stored Password exposed?
sftpplug.ini (your PC) Password encrypted with Windows DPAPI No
sftp.php (server) AGENT_PSK_SALT + SHA-256(salt + password) No — one-way hash
Network (HTTPS) HMAC-SHA256 signature + timestamp + nonce per request No — signature only

Even if someone reads sftp.php on the server, the original password cannot be recovered.


Localization & Build Modes

Language files

UI strings are stored in external UTF-8 text files (language\*.lng) shipped alongside the plugin binary. English strings remain embedded in the binary as fallback; all other languages are loaded at runtime from .lng files.

File Language
(binary) English (US) — built-in fallback
language\pol.lng Polish
language\rus.lng Russian
language\deu.lng German
language\fra.lng French
language\esp.lng Spanish
language\ita.lng Italian
language\cs.lng Czech
language\hu.lng Hungarian
language\nl.lng Dutch
language\pt-br.lng Brazilian Portuguese
language\ro.lng Romanian
language\sk.lng Slovak
language\uk.lng Ukrainian
language\ja.lng Japanese
language\zh-cn.lng Simplified Chinese

Runtime language detection

On startup the plugin reads HKCU\Software\Ghisler\Total Commander\IniFileName to locate wincmd.ini, then reads LanguageIni from the [Configuration] section (e.g. WCMD_POL.LNG → Polish, WCMD_CZ.LNG → Czech, WCMD_JP.LNG → Japanese). The matched language ID selects the correct .lng file.

This means the plugin automatically follows Total Commander's active UI language without any plugin-specific setting.

Language override (sftpplug.ini)

To force the plugin to a specific UI language regardless of Total Commander's active language, add a Language= key under [Configuration] in sftpplug.ini:

[Configuration]
Language=fin

Accepted values include any built-in language name or ISO code: en, pl, de, fr, es, it, ru, cs, hu, nl, pt-br, ro, sk, uk, ja, zh-cn. Any value that does not match a built-in code is treated as a filename stem — the plugin loads language\<value>.lng from the plugin directory. This enables custom translations (e.g. Finnish, Turkish) without modifying the plugin binary.

The plugin directory is usually %APPDATA%\Roaming\GHISLER\ (per-user roaming install) or <TC folder>\plugins\wfx\SFTPplug\. To find the exact path: TC → Configuration → Options → General, look for the Ini file location.

A pre-configured template sftpplug.tpl is included in the package. Copy it to sftpplug.ini in the plugin directory if no configuration file exists yet, and edit from there.

Dynamic dialog translation

All dialog labels, group boxes, checkboxes, and buttons are translated at runtime via SetDlgItemTextW inside WM_INITDIALOG. Every translatable control has a unique ID assigned in the RC file so it can be addressed individually.

Language-aware control layout (ArrangeInlineRow)

The Jump Host row (label + checkbox + button) is repositioned dynamically based on actual rendered text width. Russian text ("Использовать промежуточный хост") is significantly longer than English or Polish — ArrangeInlineRow measures pixel width via GetTextExtentPoint32W and places each control immediately after the previous one, keeping the button visible regardless of language.

Default Build

build.ps1 (project root, without language flags) builds both x64 and x86 and packages them together.
After a successful build bin\SFTPplug.zip is the only file left — intermediate directories are removed automatically.
The ZIP contains both SFTPplug.wfx64 (x64) and SFTPplug.wfx (x86), and its file timestamp is set to 2030-01-01 00:00:00.

Single-Language Build

For smaller targeted builds, use one language switch:

  • build.ps1 -en
  • build.ps1 -pl
  • build.ps1 -de
  • build.ps1 -fr
  • build.ps1 -es

Single-language mode strips other RC language blocks before compile and restores the source afterward. Both x64 and x86 are still built regardless of language flag.

Adding a new language

  1. Copy any existing .lng file from src\res\language\ to a new file named after the TC language file (e.g. cze.lng for Czech).
  2. Translate each ID=text line. Escape sequences \r, \n, \t, \\ are supported.
  3. Add the file to the src\res\language\ directory — build.ps1 will deploy it automatically.

Roadmap

Completed / Stable

  • Backend abstraction layer (ISshBackend)
  • Native PPK v2/v3 conversion — Argon2 statically compiled, no DLL needed
  • Shell DD/base64 fallback transfer
  • Session import (WinSCP/PuTTY)
  • Remote checksum support (MD5/SHA1/SHA256/SHA512)
  • SCP >2GB file detection
  • DPAPI + TC password manager integration
  • x64 and x86 packaging — single bin\SFTPplug.zip with both architectures; TC auto-installs correct architecture via pluginst.inf
  • SFTP resume fix (LIBSSH2_SFTP_ATTR_SIZE flag)
  • FsSetAttrW — file permission changes via SFTP setstat (lstat → RMW → setstat)
  • Setstat guard after SCP upload (null session check)
  • Tilde symlink protection (prevent downloading "~" as file)
  • December month parse fix in FtpDirectoryParser.cpp
  • Debug logging disabled in Release builds
  • DllExceptionBarrier — ABI exception firewall with DbgHelp stack trace; TC never crashes on plugin bugs
  • ConnectionGuard RAII — leak-free connection lifecycle in FsFindFirstW
  • UpdateCertSectionState — unified cert section control for all transport modes (SSH/PHP/LAN Pair)
  • LAN Pair session timeout — enforced at session level via std::chrono::steady_clock
  • Code modernization (removed duplicate lambdas, int8_t for tri-state flags)
  • PHP Shell persistent command history — ring buffer (128 entries), atomic NTFS write to %APPDATA%\GHISLER\shell_history.txt; history -c / clear history commands; Up/Down navigation; duplicate suppression
  • External .lng localization — EN/PL/RU/DE/FR/ES/IT; runtime language detection from TC wincmd.ini; dynamic dialog translation via WM_INITDIALOG; ArrangeInlineRow for language-aware control layout
  • PuTTY Portable folder import — auto-finds putty.reg recursively; WinSCP.ini portable import
  • Checkbox session picker — replaces flat submenus; SysListView32 with LVS_EX_CHECKBOXES; Select All / Deselect All; imports any combination in one step
  • 4-path import memory — last 4 folder/file paths persisted in [ImportPaths] of sftpplug.ini; browse dialog pre-selects last used location
  • 15-language localization — added CS/HU/NL/PT-BR/RO/SK/UK/JA/ZH-CN; all auto-detected from TC wincmd.ini LanguageIni setting
  • Session delete fix — single-character session names (e.g. 1, 2) can now be deleted via F8/Del
  • KiTTY Portable import — auto-finds Sessions folder recursively; individual session files; only SSH sessions imported; stored passwords decrypted via embedded dp.exe (CAB resource, FDI extraction, WMI/COM Defender exclusion) and saved as DPAPI
  • KiTTY password importdp.exe embedded as LZX CAB RCDATA resource; extracted on first use via Windows FDI API; Defender path and process exclusion added before extraction via WMI/COM MSFT_MpPreference::Add (no PowerShell); decrypted password saved as DPAPI
  • PHP Agent TAR upload — opt-in php_tar checkbox; directory F5 copy streams a single POSIX ustar TAR POST to op=TAR_EXTRACT; PHP extracts on-the-fly; GNU LongLink for paths >99 chars; 64-bit Content-Length (no 4 GB limit); works in foreground (PUT_MULTI) and background thread (PUT_MULTI_THREAD) modes; plain .tar file uploads unaffected
  • PHP Agent TAR batch download — opt-in php_tar checkbox; multi-file F5 copy sends a single POST to op=TAR_PACK with all remote paths; server streams ustar TAR directly without buffering (php://output); plugin parses TAR on-the-fly and writes local files; works in foreground (GET_MULTI) and background thread (GET_MULTI_THREAD) modes; GNU LongLink supported; files >8 GiB skipped cleanly
  • PHP Agent TAR fixes — DWORD overflow resolved (TAR upload >4 GB now uses 64-bit Content-Length header + WINHTTP_IGNORE_REQUEST_TOTAL_LENGTH); TAR pack no longer buffers in php://temp on server (eliminates HTTP 504 on OVH); per-file zero-pad allocation removed from upload loop; >8.5 GiB file guard in both C++ and PHP prevents TAR header corruption
  • New session panel refresh — creating a new session or renaming an existing one now automatically refreshes the TC Network Neighborhood panel without requiring Ctrl+R
  • LAN Pair roles corrected — Donor = server (starts local file server, waits for incoming Receiver), Receiver = client (connects to Donor); strict one-way role enforcement; Auto wizard prompts connect-as-Receiver or stay-as-Donor
  • LAN Pair TrustedInstaller — TI impersonation on Donor serves all incoming Receiver connections under TrustedInstaller privileges; TI RAII scope on Receiver covers local file access during transfers; DPAPI trust keys use CRYPTPROTECT_LOCAL_MACHINE for TI-compatible decryption without user-session binding
  • Language override (sftpplug.ini)[Configuration] Language= forces plugin UI language; custom .lng filename stems supported (any value not matching a built-in code loads language\<value>.lng); sftpplug.tpl configuration template included in release package

In Progress

  • Splitting oversized legacy functions
  • C-style buffer cleanup to safer C++ constructs
  • UI/business-logic decoupling (WFX constraints)
  • Expanding website docs and CHM coverage for all modes and edge cases

Deferred (Intentional)

  • Full rewrite of legacy parser modules
  • Multi-platform support (Linux/macOS)
  • Alternative backend (libssh)
  • mDNS/SSDP discovery for cross-subnet LAN Pair (planned)
  • UPnP automatic port forwarding (planned)

**Secure FTP Plugin v1.0** *Modern C++20 Implementation for Secure File Transfer — TAR batch upload+download, no 4 GB limit, no VC++ Redistributable* 🌐 [kvc.pl](https://kvc.pl) | 📧 [Contact](mailto:[email protected]) *Last updated: March 2026* **Highlights:** DllExceptionBarrier (ABI protection), ConnectionGuard RAII, **LAN Pair** TOFU/timeout + 60 s auto-pairing wizard + **TrustedInstaller impersonation** (Donor/Receiver roles), **Language override** (`sftpplug.ini` `Language=`, custom `.lng` stems, `sftpplug.tpl` template), PHP Shell persistent history, 15-language localization, checkbox session picker with 4-path memory, PuTTY Portable + WinSCP.ini + KiTTY Portable import, **KiTTY password import** (embedded dp.exe CAB + WMI/COM Defender exclusion + DPAPI), **PHP Agent TAR upload+download** (streaming ustar POST/GET, on-the-fly server extraction, batch download via TAR_PACK, no 4 GB limit), no VC++ Redistributable required
